CONTOUR X 210 LT

HK Audio CONCERT SOUND stands for the best sound quality, high performance and unlimited road capability. All components can be combined with each other in almost any way thanks to optimally coordinated DSP presets.

Based on the many years of experience with CONTOUR X and its predecessor series, the CX 210 LT consistently sets new standards in terms of sound pressure and range. Horizontal arrays are possible in the simplest workable way. Stacked or flown, the CONTOUR X 210 LT closes the gap between line arrays and classic point-source speakers providing sound for larger events without much effort, cost-effectively and assertively.

CONTOUR X 210 LT Key features

  • The large, rotatable horn with MTC (Multicell Transformer) offers very precise dispersion (60° x 25°). It enables simple horizontal array formation with uniform and defined coverage of the area of sonification.

  • Optimized components for maximum performance and perfect tuning ensure enormous sound pressure and long range.

  • The integrated ICF (Integrated Cluster and Flyware) mechanism allows single point flying of individual loudspeakers and arrays with minimal effort.

  • The CONTOUR X 210 LT perfectly complements the CONTOUR
    X and COSMO family. Together with existing components such as power racks or C-Sub basses, a wide variety of setups can be created. This ensures a high level of investment security and the systems can grow with the tasks.

  • Optimally configured filter presets for clusters of 1 to 4 provide ideal acoustic tuning of the speakers. FIR filters with linearized phase response for all models in the CX and COSMO families enable problem-free use in a network.

Areas of application

The CONTOUR X 210 LT was developed for events where the sound needs to be carried in detail and at high volume, especially over long distances. Whether it's brute rock music, ecstatic electro festivals or pounding hip-hop beats in a club, the CX 210 LT delivers the highest sound pressure level and the best listening experience within the CONTOUR X series. Whether stacked or flown, the CX 210 LT delivers sound far into the depths without having to operate large, complex line arrays. The sound result remains constant across the entire frequency spectrum. Whether in a club, a hall or a marquee, CONTOUR X 210 LT is always the first choice.

MCT horn

The rotatable 60° x 25° MCT horn with 1.4" driver with 3" voice coil enables a particularly high degree of efficiency thanks to a carefully calculated and large-format sound guide, impresses with an enormously high sound pressure level and a clearly defined, even dispersion behavior. By loosening just four screws, the MCT horn can be rotated in just a few simple steps. This makes it easy to create horizontal arrays.

ICF (Integrated Cluster and Flyware)

With the integrated ICF (Integrated Cluster and Flyware) mechanics, the speakers can be flown individually or as clusters of 2, 3 or 4 on just one suspension point in no time at all. Even without a tilt rail, the ICF mechanics
enables optimum range and constant-frequency dispersion for the entire audience area.
With the ICF's integrated connectors, stacked horizontal arrays of any size can be realized, even
up to a 360° closed circle.

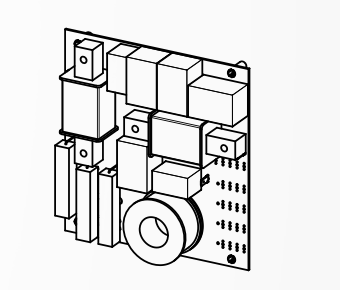

Passive 24 dB/oct. crossover

The passive 24dB/oct. crossover ensures very good separation between the mid and high frequencies thanks to its high quality. The narrower frequency overlap significantly improves the dispersion characteristics. The passive crossover also saves power amplifier channels. The careful tuning also allows operation on power amplifiers without a suitable DSP preset in an emergency.

NL 4 connection with pin selector switch

The signal tap can be set to 1+/- or 2 +/- using the integrated pin selector switch. This allows 2 separate loudspeaker groups to be connected with just one NL 4 cable. This simplifies cabling and saves cable material.

Filter presets for Lab.Gruppen and Powersoft

Optimally configured filter presets for clusters of 1 to 4 provide ideal acoustic tuning of the speakers. The simple loading of the presets saves valuable time and makes it possible to create a horizontal array in the shortest possible time. Perfectly matched presets for all models of the CX and COSMO families enable problem-free use in various combinations.

Housing

The housing of the CX 210 LT meets the high CONTOUR X standards. Made from high-strength birch multiplex with a durable PU coating, it withstands the rigors of the road well beyond the depreciation period.

Technical specifications

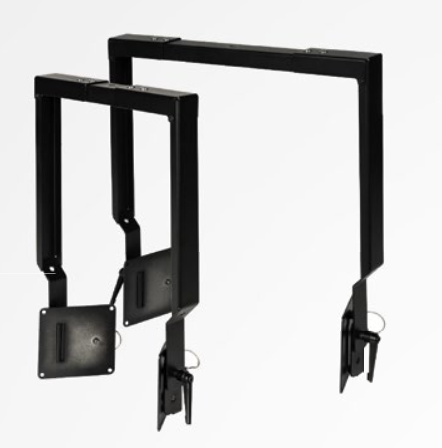

TBQ bracket TB-210NQ

The TB-210NQ is a tilt bracket with quick release pins for mounting the CONTOUR X 210 LT on truss, ceilings, wall brackets, beams and tripods. Quick mounting on the box is ensured by means of quick release pins. Flexible vertical and horizontal alignment is possible. With this flying bracket set, CONTOUR X 210 LT can be used either as a single application or as a cluster of 2.

Rigging bar CXR-210

With the optional flying rail, up to four CONTOUR X 210 LT can be flown easily and at any angle in a horizontal array.

Protection Cover

The Protection Cover is a padded transport protection for CONTOUR X 210 LT.

System suggestions

CX 210 LT with CS 118 Stacked system

Main system in smaller clubs, marquees, multifunctional halls

Stereo:
2 x CX 210 LT
4 x CS 118
1 x C-Drive 4 (LG or PS)

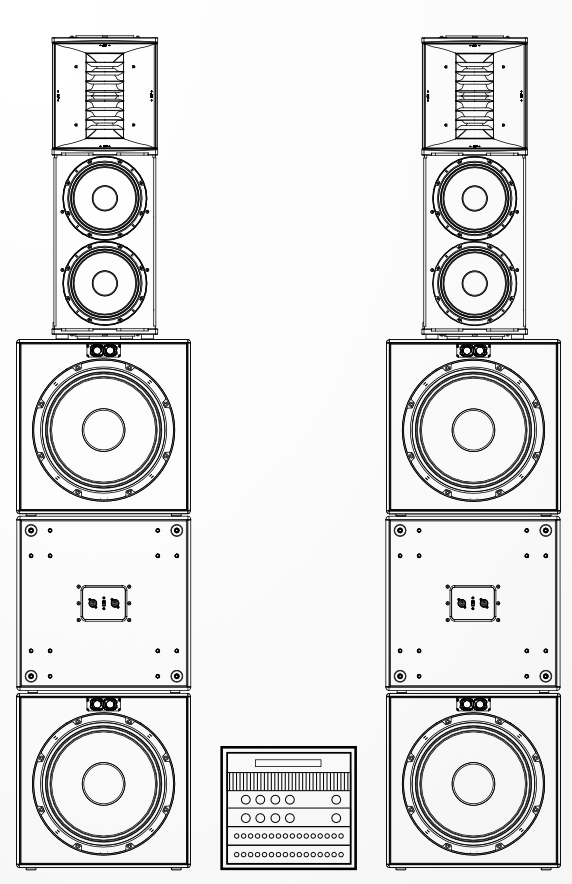

CX 210 LT with CS 118
Full stack system with cardioid setup

Application: Main system in medium sized clubs, mar- quees, multifunctional halls
2 amp channels freely available for e.g. front- or sidefill applications

Stereo:
2 x CX 210 LT
6 x CS 118
1 x C-Drive 8 (LG or PS)

Setup examples

CX 210 LT with CS 218 Double full stack system

Application:: Main system in medium sized clubs, marquees and small to medium sized festivals where flying the system is not possible

2 amp channels freely available for e.g. front- or sidefill applications

Stereo:
6 x CX 210 LT
6 x CS 218
1 x C-Drive 4 (LG or PS) 1 x C-Drive 8 (LG or PS)

CX 210 LT with CS 218
High power wide dispersion system

Application: Flexible areas of application such as festivals, big clubs and city parties where flown tops are desired
2 amp channels freely available for e.g. front- or sidefill applications

Stereo:
8x CX 210 LT
6x CS 218
1x C-Drive 4 (LG or PS) 1x C-Drive 8 (LG or PS)

FAQs

-        Which power amplifiers are recommended for the CONTOUR X 210 LT?

The CX 210 LT delivers the best performance with the C-Drive racks in conjunction with the respective filters for Labgruppen PLM+ or Powersoft X models. Due to its high power-handling capacity, the best results are achieved with PLM+ 12K44 or Powersoft X4.



-       Can the CX 210 LT also be operated with another power amplifier?

Due to the integrated passive crossover, the CX 210 LT delivers good results even with power amplifiers without suitable DSP filter options. However, the user must ensure that the limiter setting is appropriate.



-       How many CX 210 LT can I operate on one AMP channel?

The filter presets are optimized for one or two cabinets per channel. If there are 3 or more speakers in an array, we recommend using the appropriate filters for midrange compensation and thus multiple amp channels. Thanks to the pin selector switch (1+/- 2+/-), these can be connected with just one common NL-4 cable.



-       How many speakers can I connect to form a horizontal array?

Due to the shape of the housing, it is possible to connect CONTOUR X 210 LT to form a horizontal array up to a maximum of 360°. However, we only offer filters for arrays with a maximum of 4 cabinets.



-       How do CX 210 LT and LINEAR 9 210 LTA differ?

The CX 210 LT uses a B&C 1.4" HF driver with a 3" voice coil, and the LINEAR 9 210 LTA uses a HF driver with a 2.5" voice coil. In addition, the CX 210 LT has the integrated cluster and flight mechanics (ICF). The MCT horn is identical on both models. In addition to the mid-range compensation that is available on both models, the filter presets of CX 210 LT also offer mid beaming to compensate for the “constriction” of the mid frequencies in larger arrays.



-       Which preset filters are available for CX 210 LT?

There are filters for arrays of 1-4 cabinets available, for Lake and soon also for Armonia+. All array filters offer midrange compensation. For arrays of 3 and 4 and mid-beaming has been integrated into the filters to achieve an even horizontal coverage. The filters are available as FIR filters with matching phase progression for COSMO and CX, as well as IIR filters with lower latency for monitor (sidefill) applications, for example.



-       Why does the CONTOUR X 210 LT weigh 38.5 kg?

CONTOUR X 210 LT is slightly above the average weight of comparable competing products. In addition to the solid construction of the speakers, CONTOUR X 210 LT is the only speaker in its class that is equipped with completely integrated cluster and flight hardware (ICF). This enables safe connection and rigging without additional heavy flight hardware, unlike comparable products from other manufacturers.

-       Can I combine CX 210 LT with my existing HK Audio Concert Sound products?

CONTOUR X 210 LT is part of the CONCERT SOUND family and therefore fits perfectly with the existing models of CONTOUR X, COSMO and C-SUB cabinets. FIR and IIR filters enable the optimal creation of numerous system combinations for a wide range of application scenarios.
